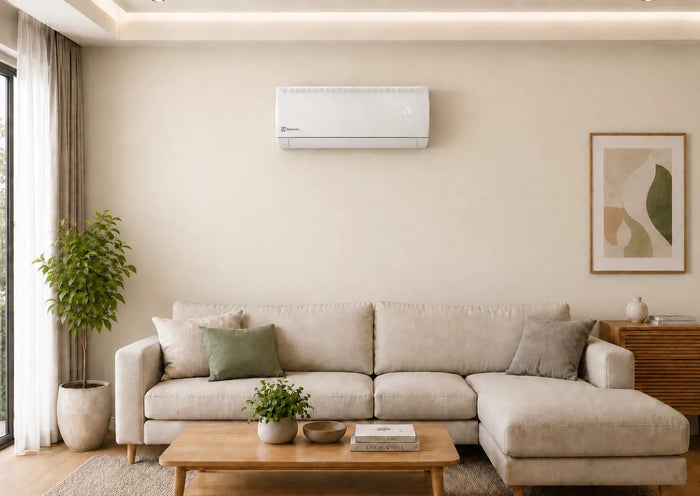

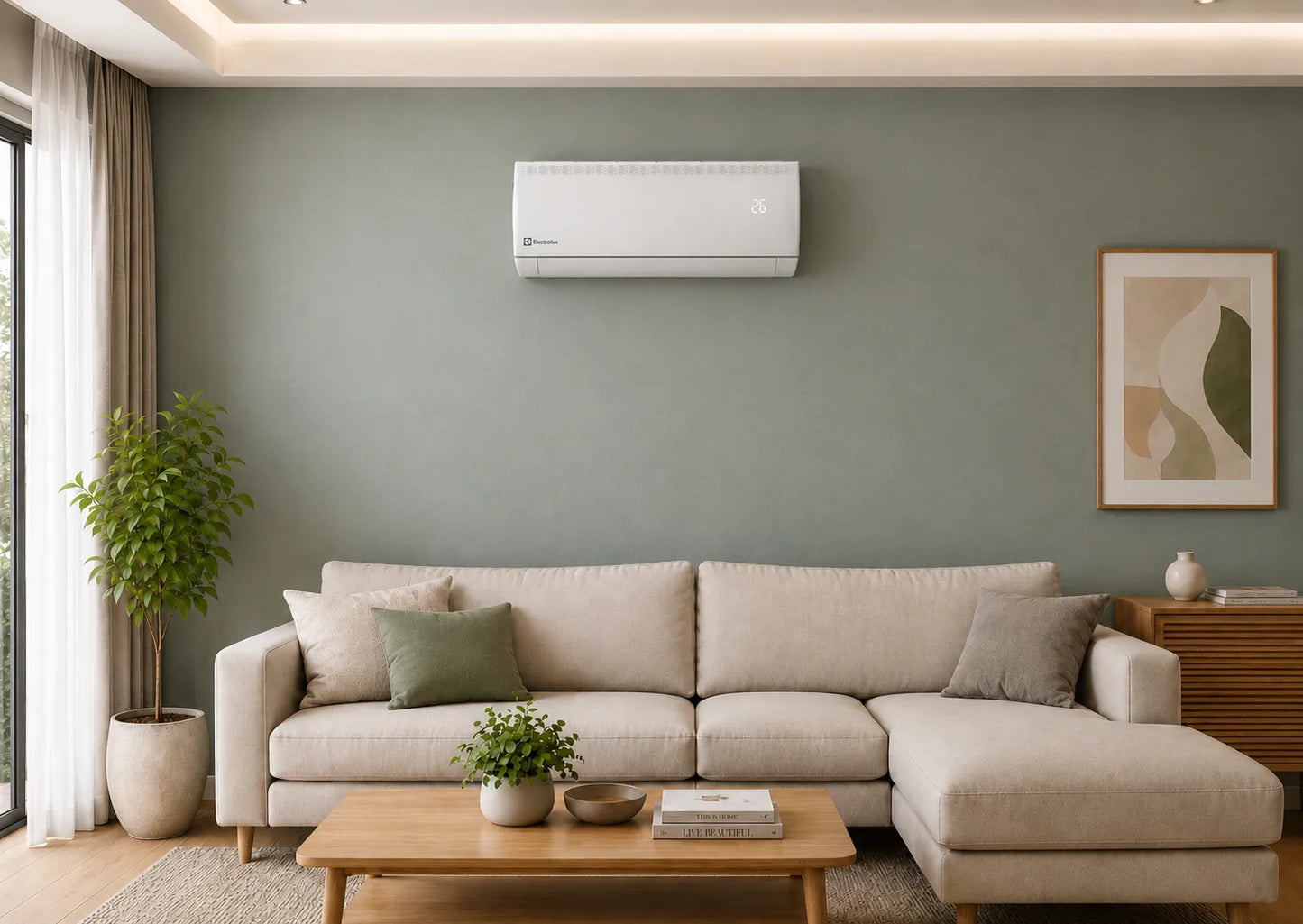

Vega 24,000 BTU mini split | 19 SEER2 | Wi-Fi | Up to 1,250 sq ft
Vega 24,000 BTU mini split | 19 SEER2 | Wi-Fi | Up to 1,250 sq ft
Regular price
$1,079.00 USD
Regular price
Sale price
$1,079.00 USD
Year-round heating and cooling for large open-plan areas, great rooms, and whole-floor spaces — in one wallmounted unit. The most powerful unit in the Vega series, built to condition every corner of your largest living
spaces.
Covers up to 1,250 sq ft — the most powerful unit in the Vega series
19 SEER2 — AHRI-certified efficiency, independently verified
Wi-Fi, Alexa & Google Assistant built in
SKU:
View all specs
Model : SAC24SHV19-1
View full details
Built for better living, every season
Every feature in the Vega is designed to make your home more comfortable, more efficient, and easier to live in — without adding complexity to your life.
Built for spaces where smaller units fall short
Great rooms, whole-floor open plans, and large combined living areas are where most mini splits struggle. The Vega 24K is engineered to deliver consistent temperature across 1,250 sq ft — with the airflow and capacity to condition every corner. No ductwork, no window units, no compromise.
Verified efficiency — not just self-reported
19 SEER2, EER2 10.5, HSPF 8.5 — every number independently verified by AHRI, not just claimed. That means lower seasonal cooling costs and efficient heating all winter, backed by a certification you can trust.
Low background noise, even at full capacity
At 39 dB(A) minimum, the Vega 24K keeps background noise low while powering through 1,250 sq ft — comparable to a quiet conversation, so even in large great rooms and whole-floor spaces the unit stays present without being intrusive. Five fan speeds for flexible noise and airflow control.
Control your climate from anywhere
Adjust temperature, set schedules, and switch modes from your smartphone. Works with Alexa and Google Assistant for hands-free voice control. A backlit remote with 24-hour timer means it works without Wi-Fi too.
Cleaner air, automatically
High-temp self-clean heats the coil to sterilizing temperature and purges the indoor unit automatically — no service call, no mold buildup. Filter change alerts keep air quality consistently at its best.
Everything included, ready to install
Ships with pre-charged line set, backlit remote and batteries, rubber shock pad, wall-piercing protective circle, copper nuts, expansion anchor bolts, putty, tape, and cable ties. No sourcing parts, no surprises. Professional installation recommended.
Thoughtfully engineered, inside and out
Inverter compressor
Steady temperatures, no cycling
19 SEER2
AHRI-certified efficiency
R32 refrigerant
Lower environmental impact than R410A
8 comfort modes
Auto, Cool, Heat, Dry, Fan, Turbo, Sleep, Eco
5 fan speeds
Flexible noise and airflow control
Auto swing (up/down)
Even airflow across large spaces
Louver position memory
Remembers your preferred airflow direction
Wi-Fi + app control
Manage comfort from anywhere
Alexa & Google Assistant
Hands-free voice control
High-temp self-clean
Automatic coil sterilization
Deep-clean air channel
Purges buildup from the indoor unit
Chassis heater
Cold climate protection
Fire-rated electrical box
Built-in safety
Modular PCB design
Easier servicing, longer life
Backlit remote
24-hour timer — no Wi-Fi needed
Top-access washable filter
Simple upkeep, no tools required
Auto restart
Resumes after power interruptions
3-year compressor warranty
Reliable coverage for the long term
Product technical specifications
Full performance, installation, and dimensional details for the Vega 24,000 BTU mini split | 19 SEER2 | Wi-Fi | Up to 1,250 sq ft
| Specification | Value |
|---|---|
| Cooling capacity | 24,000 BTU (range: 5,460–24,225 BTU) |
| Heating capacity | 24,000 BTU (range: 5,460–25,930 BTU) |
| Heating operation range | Down to 19°F outdoor temperature |
| SEER2 | 19 |
| EER2 @ 95°F | 10.5 |
| HSPF | 8.5 |
| Coverage area | Up to 1,250 sq ft |
| Inverter | Yes |
| Zone | Single zone |
| Moisture removal | 2.36 L/h |
| Specification | Value |
|---|---|
| Indoor noise level | 50 / 47 / 43 / 39 / 39 dB(A) |
| Airflow (Low / High) | 765 / 1,300 CFM |
| Fan speeds | 5 |
| Operating modes | Auto, Cool, Heat, Dry, Fan-Only, Turbo, Sleep, Eco |
| Auto swing | Up/down |
| Louver position memory | Yes |
| Frost protection | 46°F (8°C) |
| Set point temperature range | 60°F – 90°F |
| Specification | Value |
|---|---|
| AHRI certified | Yes |
| Energy Star certified | No |
| Refrigerant | R32 |
| Refrigerant charge | 45.9 oz |
| Specification | Value |
|---|---|
| Voltage | 208/230V |
| Rated input power (cooling) | 2,100W |
| Rated input power (heating) | 2,200W |
| Rated current (cooling) | 9.5A |
| Rated current (heating) | 10A |
| Maximum overcurrent protection | 16A |
| Maximum lineset length | 15 ft |
| Maximum elevation difference | 32.8 ft |
| Connecting pipe — gas line | 1/2" |
| Connecting pipe — liquid line | 1/4" |
| Estimated installation time | ~60 minutes |
| Condensate drain method | Gravity |
| Included kit contents | Pre-charged line set, backlit remote & batteries, rubber shock pad, wall-piercing protective circle, copper nuts, expansion anchor bolts, putty, tape, cable ties, warranty card |
| Specification | Outdoor Unit (ODU) | Indoor Unit (IDU) |
|---|---|---|
| Dimensions (W × D × H) | 32-3/8" × 25-13/16" × 11-7/8" | 44-9/16" × 12-15/16" × 9-1/8" |
| Net weight | 70.6 lbs | 30.9 lbs |
| Gross weight | 80.5 lbs | 39.7 lbs |
| Specification | Value |
|---|---|
| Wi-Fi app control | Yes |
| Local on-device scheduling | Yes |
| Alexa | Yes |
| Google Assistant | Yes |
| Apple HomeKit | No |
| Geofencing | No |
| Filter change alert | Yes |
| Self-diagnosis | Yes |
| Timer | Yes |
| Display on/off | Yes |
| °C / °F switch | No |
| Specification | Value |
|---|---|
| Self-clean | Yes |
| High-temp self-clean & sterilization | Yes |
| Deep-clean air channel | Yes |
| Filter type | Top-access washable |
| Specification | Value |
|---|---|
| Compressor warranty | 3 years |
| Parts warranty | 1 year |
| Registration required | No |
| Chassis heater (cold climate) | Yes |
| Fire-rated electrical box | Yes |
| Modular PCB design | Yes |
| Auto restart | Yes |
| Forced defrost | Yes |
| Specification | Value |
|---|---|
| Compressor brand | GMCC |
| Compressor type | Rotary |
| Compressor model | KTN150D43UFZC31 |
